RF-FBD Series — Fluid Bed Dryer Fabrics
Precision air distribution fabrics for fluid bed dryers, granulators, and coaters. Controlled permeability, antistatic options, and materials compliant with FDA 21 CFR for pharmaceutical and industrial applications.
Request a Quote
Series Overview

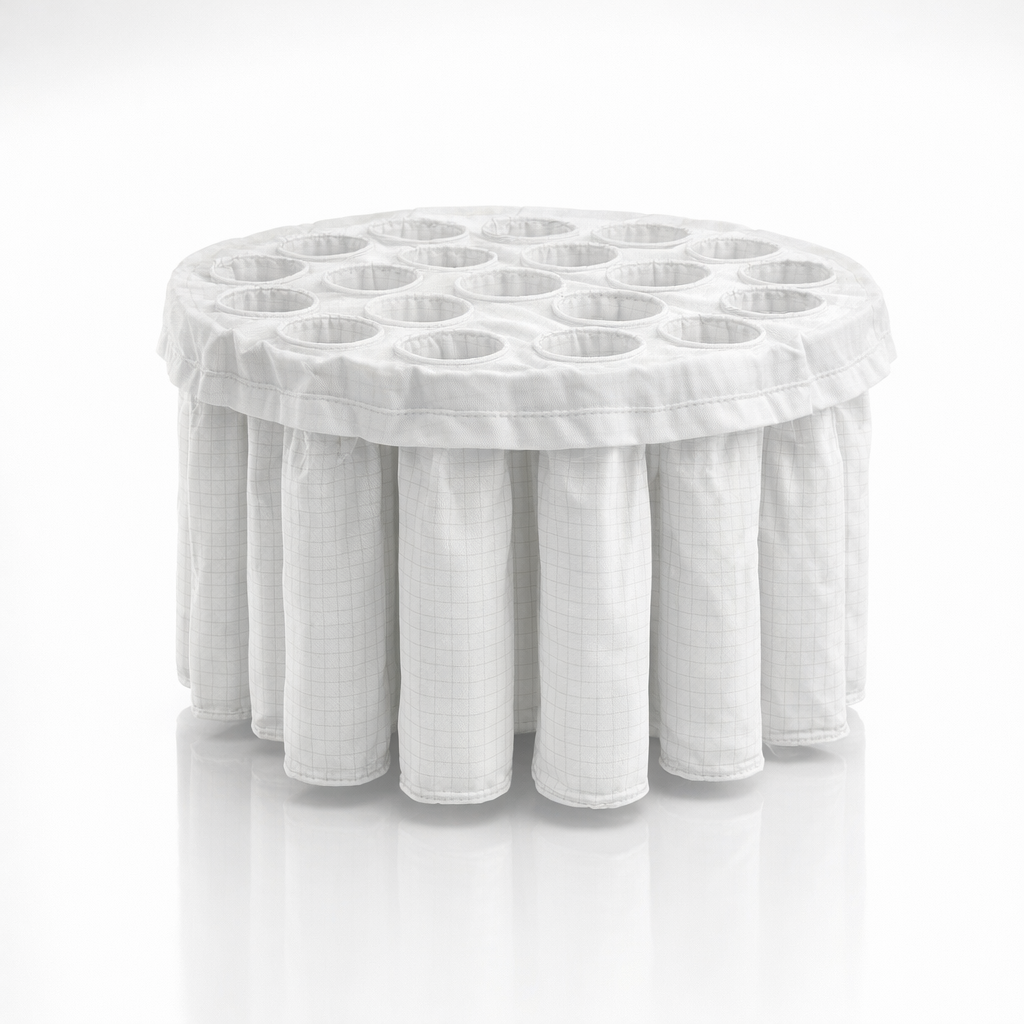

The RF-FBD Series provides air distribution and product retention fabrics for all types of fluid bed processors. The fabric sits at the base of the product bowl, distributing heated or cooled air uniformly through the powder bed while retaining fine particles. Precise air permeability control ensures optimal fluidisation without channelling or dead zones.
Controlled Airflow
Precise permeability
Antistatic Options
ATEX Zone 1/21
FDA-Grade Materials
Food & pharma grade
OEM Compatible
All major brands
Configure your fluid bed dryer bag online
Answer a few guided questions about your application and receive a near-complete specification with a pre-filled inquiry. Skip anything you are unsure about.
Key Features
Engineered for the specific demands of fluid bed processing.
Uniform Air Distribution
Tightly controlled air permeability ensures even fluidisation across the entire product bowl. No hot spots, no under-fluidised zones.
Fine Particle Retention
Calibrated pore sizes retain fine powder while allowing air to pass freely. Minimal product loss through the distribution plate.
Permanent Antistatic
Conductive stainless steel fibres woven into the fabric provide permanent ESD protection for ATEX-classified environments.
Temperature Stability
Dimensionally stable at inlet air temperatures up to 150°C. No shrinkage or permeability drift during extended drying cycles.
Easy Cleaning
Smooth monofilament surfaces resist product adhesion. Quick to clean between batches — essential for multi-product pharma facilities.
Validated Performance
We supply IQ/OQ documentation, material certificates, and air permeability test reports for pharmaceutical validation requirements.
Technical Specifications
Approximate values. Actual specifications depend on construction and application.
| Material | Max. Temp. | Air Permeability | Weight | Typical Use |
|---|---|---|---|---|
| PET (Polyester) | 150 °C | 200–800 L/m²/s | 200–500 g/m² | Standard drying, cooling |
| PA (Polyamide) | 120 °C | 150–600 L/m²/s | 180–450 g/m² | Pharma granulation |
| PP (Polypropylene) | 100 °C | 250–900 L/m²/s | 150–400 g/m² | Chemical, food processing |
| PET Antistatic | 150 °C | 200–800 L/m²/s | 220–520 g/m² | ATEX zones, solvent drying |
Related Machines & Applications
Fluid Bed Dryer
Learn how RF-FBD fabrics integrate with fluid bed dryers, granulators, and coaters.
Learn MorePharmaceutical Filtration
Fabrics made from FDA-compliant materials for pharma fluid bed processing with full GMP documentation.
Learn MoreCement & Bulk Solids
Air distribution fabrics for fluid bed coolers in cement and mineral processing.
Learn MoreAntistatic / ATEX
Permanent ESD protection for explosive powder drying environments.
Learn MoreIndependent manufacturer — no affiliation with the named companies. R+F FilterElements GmbH is an independent manufacturer of filter fabrics and filter elements. All manufacturer, machine and brand names on this page are used solely to describe the compatibility of our products with existing equipment. We are not affiliated with, endorsed by, authorised by or a licensee of the named companies, and we do not supply original spare parts. All trademarks remain the property of their respective owners.
Need fluid bed dryer fabrics?
Share your machine model, product, and process requirements — we will recommend the optimal fabric specification.
